| Track |
180(width) × 72(pitch) × 37(section) |
| Dead-weight |
1.3T |
| Maximum Operating Radius |
6m |
| Standard Configuration |
Diesel Engine / Gasoline Engine |
| Maximum Ground Lift |
6.5m |
| Length Width Height |
2.5m × 0.65m × 1.5m |
| Hook Lifting Speed |
0-8m/min (4 ropes) |
| Steel Wire Rope Specification |
Φ8mm × 45m |
| Boom Form |
2m × 4-section lifting arm (Support customization) |
| Boom Length / Time |
6.5m / 20sec (Support customization) |
| Boom Angle / Time |
0-78° / 13sec |
| Rotation Angle / Speed |
0-360° (Continuous) / 60sec |
| Outrigger Movement Form |
Manual screw out + oil pressure automatic support (two legs) |

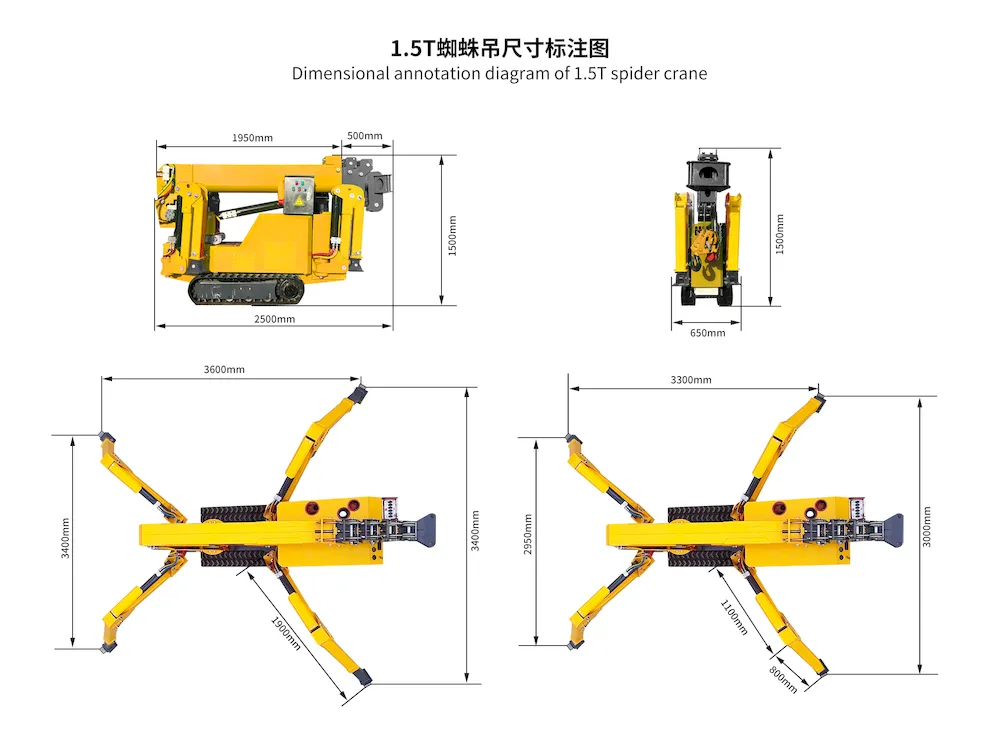

| Maximum Extension Amplitude |
3600 (Length) × 3400 (Rear) × 3400 (Front) |
| Walking Mode |
Hydraulic Motor Drive |
| Walking Speed |
0-2.5km/h |
| Gradeability |
25° (36%) |
| Voltage |
AC380V |
| Engine Manufacturer |
Honda (Support customization) |
| Type / Displacement |
390 |
| Start Mode |
Electric Start |
| Start Performance |
-5℃ – 40℃ |
| Fuel / Volume |
Gasoline / 15L |
| Battery Capacity |
12V 45AH |
| Fuel Consumption Rate |
274g/kW-h |
| Noise Level |
Rated Speed ≤81.5dBA (1m) |
| Operation Type |
Manual operation, manual walking |
| Operational Characteristics |
Manual Operation |
