| Specifications |
14T |
| Maximum Operating Radius |
23m |
| Maximum Ground Lift |
25m |
| Hook Lifting Speed |
10m/min (4 ropes) |
| Hoist Specifications |
14T |
| Steel Wire Rope Specification |
Φ12mm × 120m |
| Telescopic Arm Form |
6m × 5-section Lifting Arm (Support Customization) |
| Telescopic Arm Length |
6.5m – 25m (Support Customization) |
| Boom Length / Time |
12.3m / 40sec (Support Customization) |
| Boom Angle / Time |
0-78° / 17sec |
| Rotation Angle / Speed |
0-360° (Continuous) / 42sec |
| Outrigger Movement Form |
Manual Screw Out + Hydraulic Telescopic + Automatic Support |
| Maximum Extension Amplitude |
8100 (Length) × 5600 (Rear) × 6700 (Front) |
| Track Structure |
Steel Track |
| Walking Mode |
Hydraulic Motor Drive |
| Walking Speed |
0-2.5km/h |
| Gradeability |
25° (36%) |
| Manufacturer |
Yuchai (Support Customization) |
| Start Mode |
Electric Start |
| Start Performance |
-5°C ~ 40°C |
| Fuel / Volume |
Diesel Oil / 8L |
| Emission Standard |
National Phase II |
| Operation Type (Boom/Leg) |
Manual Operation, Manual Walking (Optional Remote Control) |
| Operational Characteristics |
Manual Operation (Optional Remote Control) |

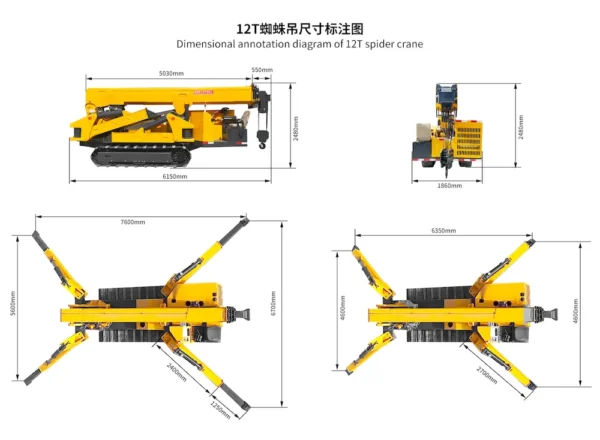

| Vehicle Size |
66000 × 2000 × 24800mm |
| Dead Weight |
14500kg |
| Optional Device |
Optional Torque Controller / Remote Control / Hanging Basket / Hydraulic Fly Jib |
