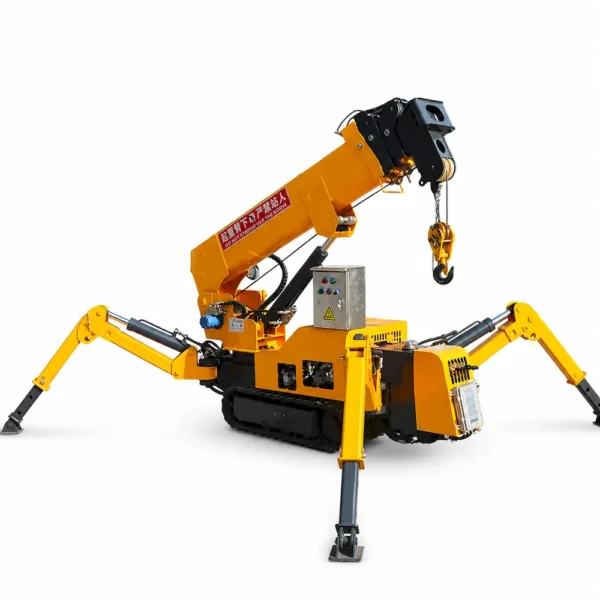

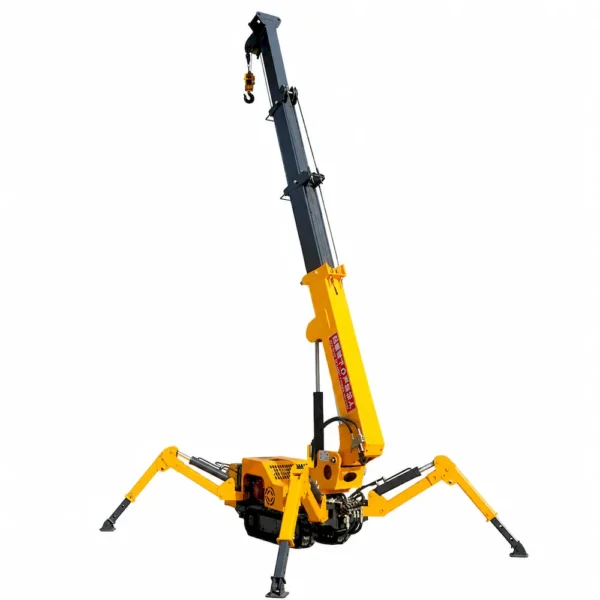

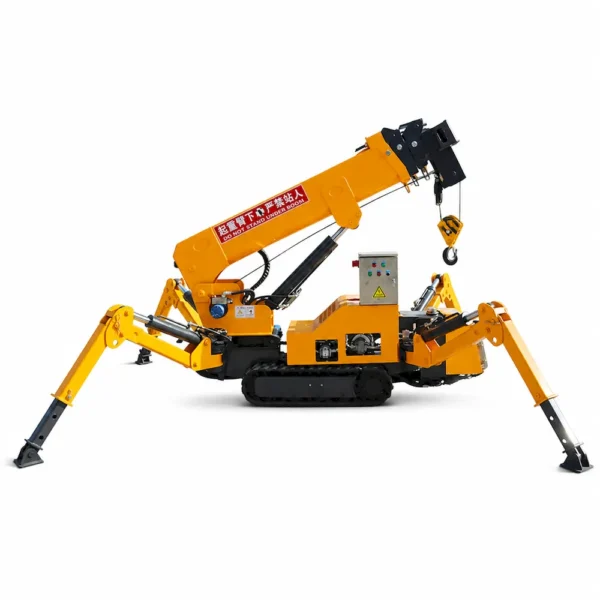

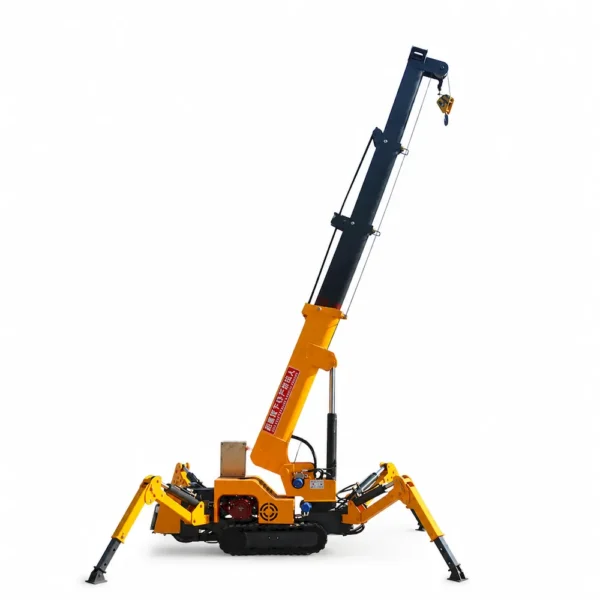

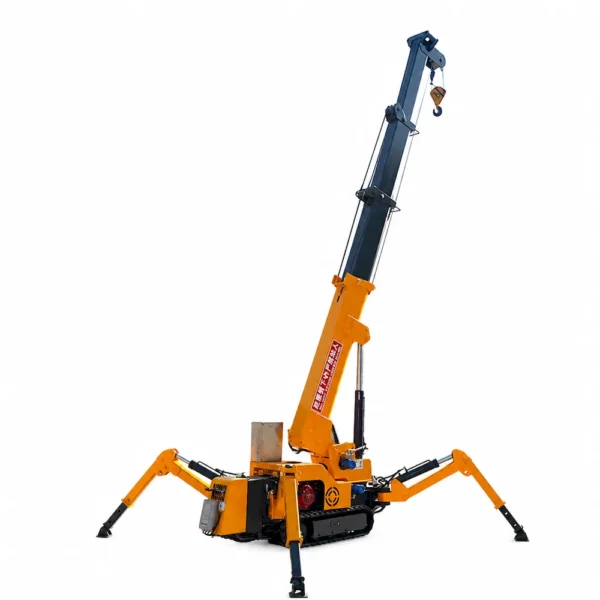

| Model |
2T |
| Dead-weight |
1.8T |
| Maximum Operating Radius |
6m |
| Standard Configuration |
Gasoline engine (Diesel engine optional) |
| Maximum Ground Lift |
6.5m |

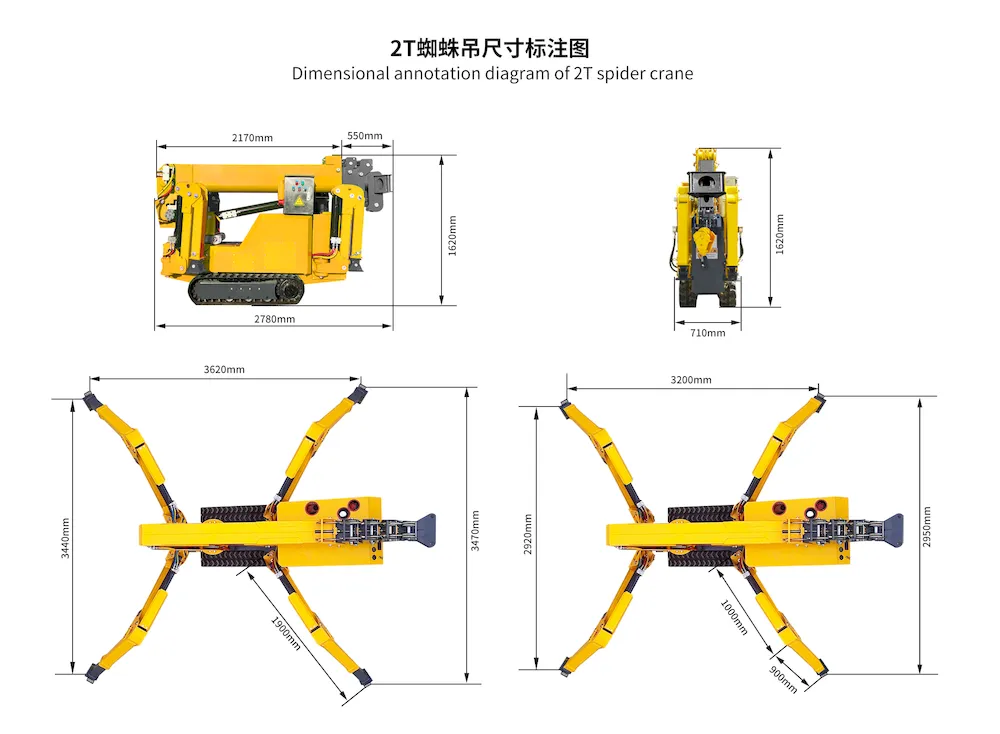

| Vehicle Size |
2.78m Length × 0.71m Width × 1.62m Height |
| Hook Lifting Speed |
0-8m/min (4 ropes) |
| Specification of Steel Wire Rope |
Φ8mm × 45m |
| Boom Form |
2m × 4-section boom (Customizable) |
| Boom Length / Time |
6.5m / 20sec (Support customization) |
| Boom Angle / Time |
0-78° / 13sec |
| Rotation Angle / Speed |
0-360° (Continuous) / 60sec |
| Outrigger Movement Form |
Manual screw-out + hydraulic automatic support (Three-section legs retractable) |
| Maximum Extension Amplitude |
3620 (Length) × 3440 (Rear) × 3470 (Front) |
| Walking Mode |
Hydraulic Drive |
| Walking Speed |
0-2.5km/h |
| Gradeability |
25° (36%) |
| Track |
180 (Width) × 72 (Pitch) × 37 (Section) |
| Voltage |
AC380V |
| Manufacturer |
Honda (Customizable / Optional for other brands) |
| Model Number |
390CC |
| Start Mode |
Electric Start / Manual |
| Start Performance |
-50℃ – 45℃ |
| Fuel / Volume |
Gasoline / 8L |
| Battery Capacity |
12V 45AH |
| Fuel Consumption Rate |
274g/kW-h |
| Noise Level |
Rated Speed ≤81.5dBA (1m) |
| Operation Type (Boom/Leg) |

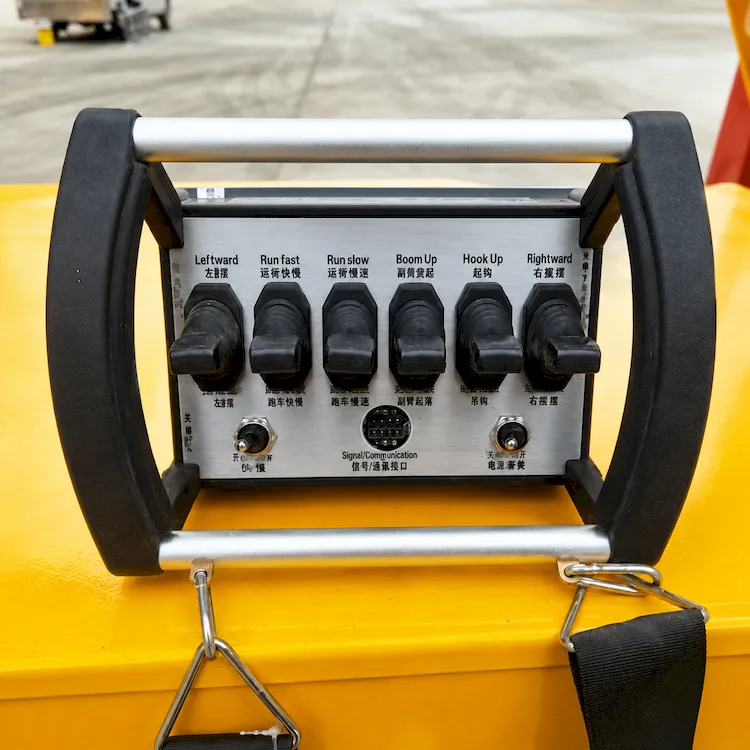

Manual operation, manual travel (Optional remote control operation) |
| Operational Characteristics |
Manual operation (Remote operation optional) |
| Optional |

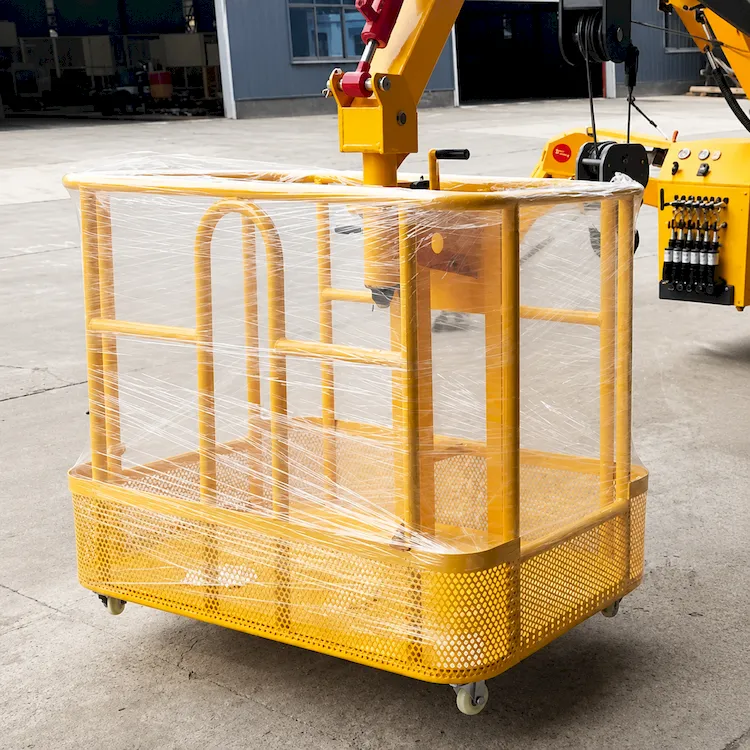

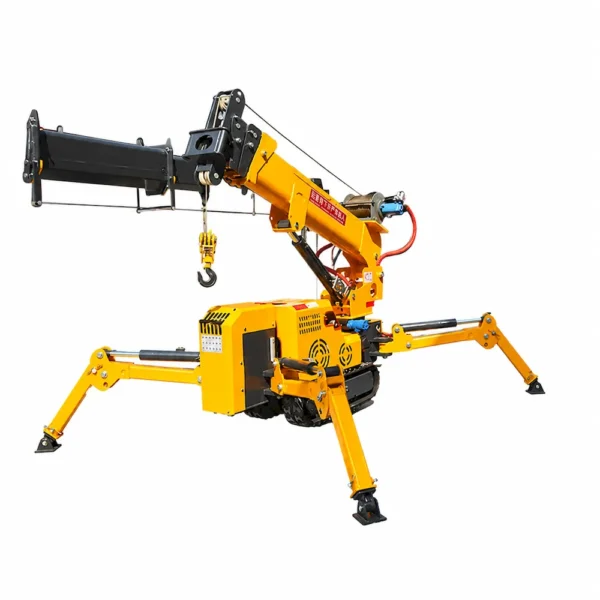

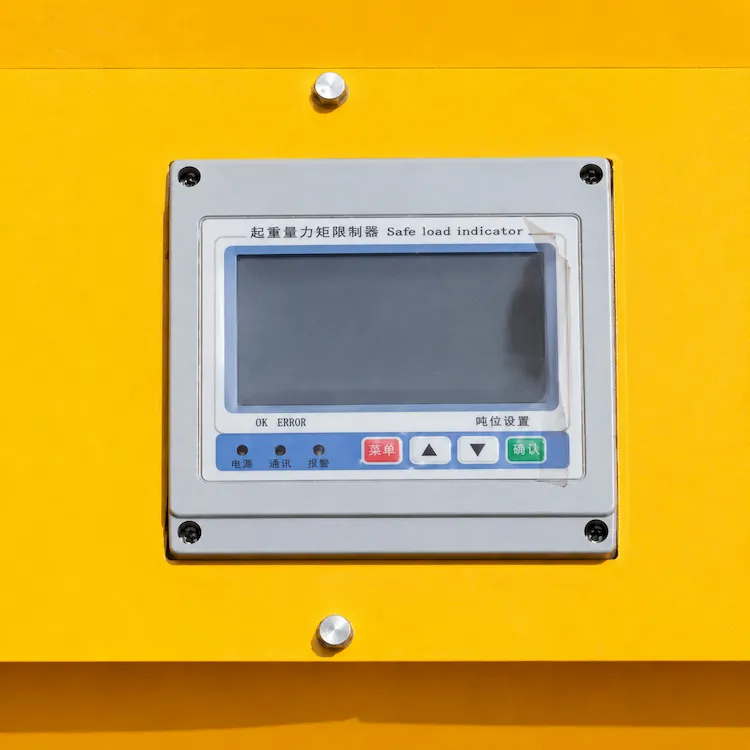

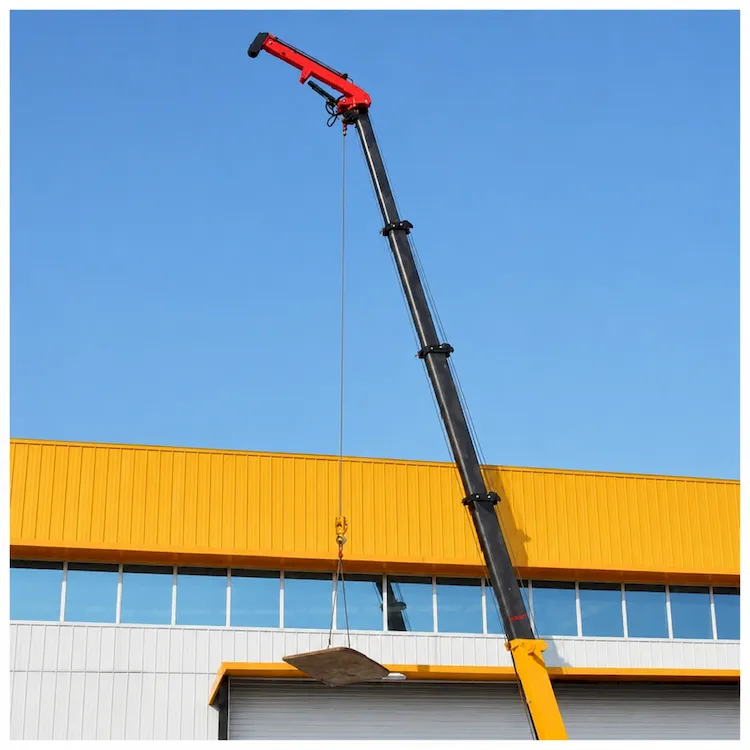

Optional torque controller / remote control / cradle / hydraulic flying jib / colors: red, green, yellow, white, grey, black |
