| Specifications |
3T |
| Dead-weight |
3000kg |
| Maximum Operating Radius |
10.5m |
| Standard Configuration |
Electric Motor (Single Power) |
| Maximum Ground Lift |
10.8m |

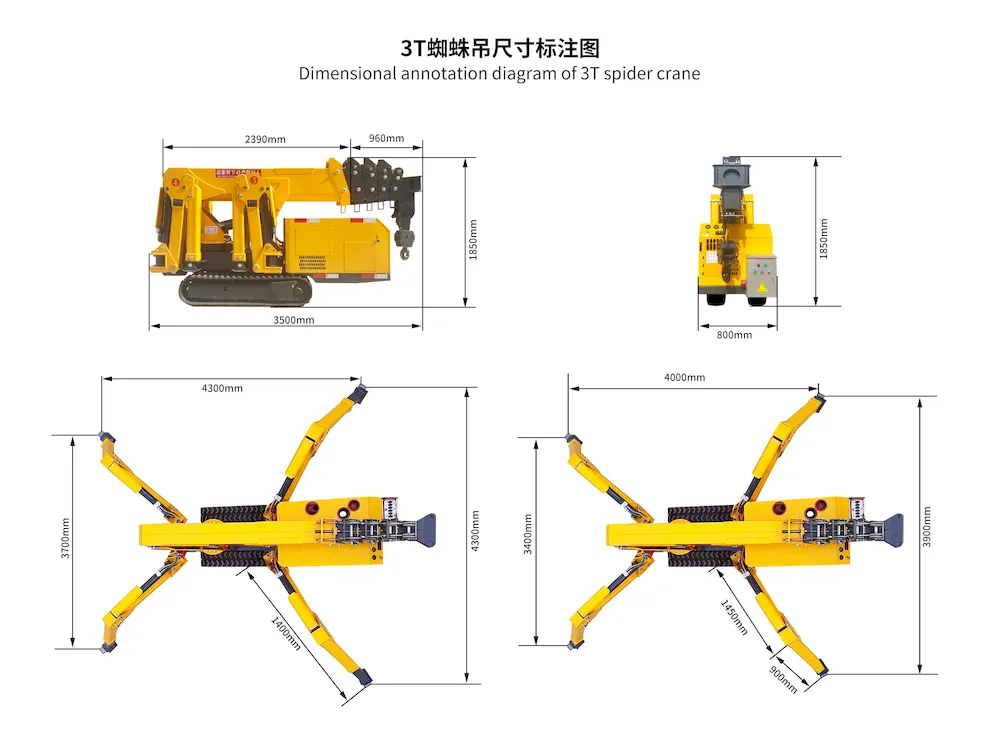

| Vehicle Size |
3.5m Length × 0.8m Width × 1.9m Height |
| Hook Lifting Speed |
0-12m/min (4 ropes) |
| Specification of Steel Wire Rope |
Φ8mm × 50m |
| Boom Form |
2.4m × 6-section Lifting Arm (Support Customization) |
| Boom Length / Time |
3.1m – 9.2m / 20sec (Support Customization) |
| Boom Angle / Time |
0-78° / 13sec |
| Rotation Angle / Speed |
0-360° (Continuous) / 60sec |
| Outrigger Movement Form |
Manual Screw Out + Oil Pressure Automatic Support (Two Legs) |
| Maximum Extension Amplitude |
4530 (Length) × 4370 (Rear) × 3700 (Front) |
| Walking Mode |
Hydraulic Motor Drive |
| Walking Speed |
0-2.5km/h |
| Gradeability |
25° (36%) |
| Voltage |
48V |
| Electrical Machinery |
5.5kw |
| Noise Level |
About 50dB |
| Battery Capacity |
600AH |
| Working Time |
6-7H |
| Lithium Battery Motor |
Single Power |
| Operation Type (Boom/Leg) |
Manual Operation, Manual Walking (Optional Remote Control) |
| Operational Characteristics |
Manual Operation (Optional Remote Control) |
| Standard Configuration |
Electric Motor (Single Power) |
| Track Size |
230 (Width) × 72 (Pitch) × 50 (Section) |
| Optional Device |
Optional Torque Controller / Remote Control / Hanging Basket / Hydraulic Fly Jib |
