| Specifications |
8T |
| Dead-weight |
8.7T |
| Maximum Operating Radius |
18m |
| Emission Standard |
National Phase II |
| Maximum Ground Lift |
21m |

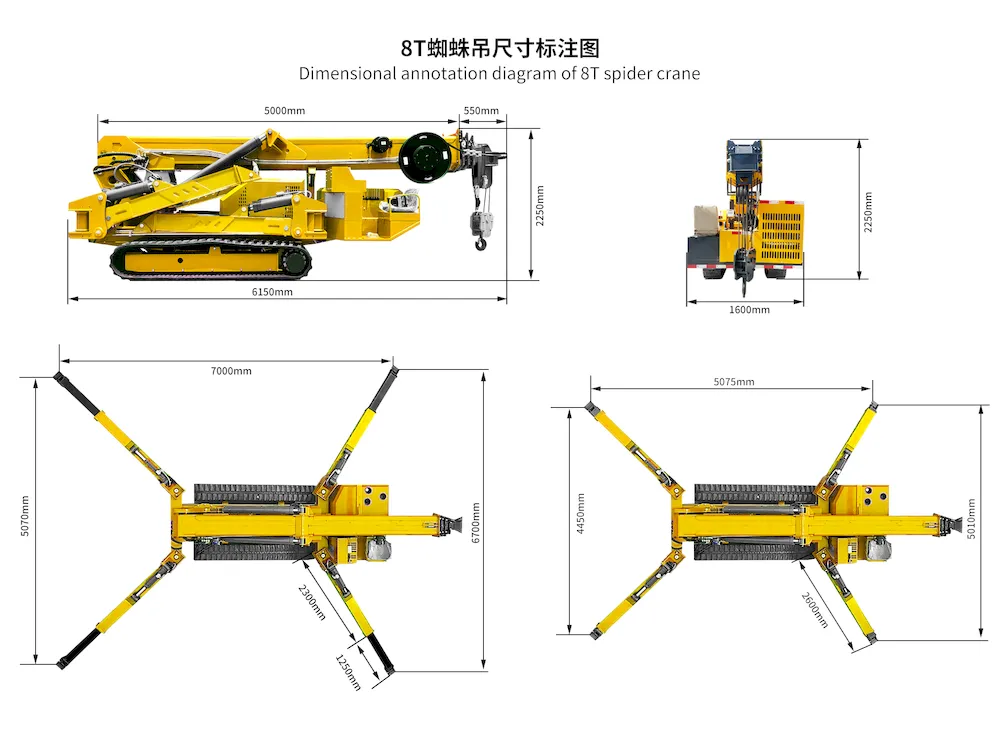

| Vehicle Size |
6.15m Length × 1.6m Width × 2.25m Height |
| Hook Lifting Speed |
12m/min (4 ropes) |
| Specification of Steel Wire Rope |
Φ12mm × 80m |
| Boom Form |
5m × 5-section Lifting Arm (Support Customization) |
| Boom Length / Time |
5.5m – 21m / 54sec (Support Customization) |
| Boom Angle / Time |
0-78° / 13sec |
| Rotation Angle / Speed |
0-360° (Continuous) / 38sec |
| Outrigger Movement Form |
Manual Screw Out + Oil Pressure Automatic Support (Two Legs) |
| Maximum Extension Amplitude |
7000 (Length) × 5070 (Rear) × 6700 (Front) |
| Walking Mode |
Hydraulic Motor Drive (Dual Speed) |
| Walking Speed |
0-2.5km/h |
| Gradeability |
25° (36%) |
| Manufacturer |
Yuchai (Support Customization) |
| Type / Displacement |
490 |
| Start Mode |
Electric Start |
| Start Performance |
-5℃ – 40℃ |
| Fuel / Volume |
Diesel Oil / 30L |
| Battery Capacity |
24V 45AH |
| Operation Type (Boom/Leg) |
Manual Operation, Manual Walking (Optional Remote Control) |
| Operational Characteristics |
Manual Operation (Optional Remote Control) |
| Track Size |
350 (Width) × 52.5 (Pitch) × 104 (Section) |
| Optional Device |
Optional Torque Controller / Remote Control / Hanging Basket / Hydraulic Fly Jib |
