| Specifications |
12T |
| Maximum Operating Radius |
19m |
| Maximum Ground Lift |
21m |
| Hook Lifting Speed |
10m/min (4 ropes) |
| Hoist Specifications |
12T |
| Steel Wire Rope Specification |
Φ12mm × 120m |
| Telescopic Arm Form |
5m × 5-section Lifting Arm (Support Customization) |
| Telescopic Arm Length |
5.5m – 21m |
| Boom Length / Time |
12.3m / 60sec (Support Customization) |
| Boom Angle / Time |
0-78° / 17sec |
| Rotation Angle / Speed |
0-360° (Continuous) / 42sec |
| Outrigger Movement Form |
Manual Screw Out + Hydraulic Telescopic + Automatic Support |
| Maximum Extension Amplitude |
7600 (Length) × 5600 (Rear) × 6700 (Front) |
| Track Structure |
Steel Track |
| Walking Mode |
Hydraulic Motor Drive |
| Walking Speed |
0-2.5km/h |
| Gradeability |
25° (36%) |
| Manufacturer |
Yunnei (Support Customization) |
| Start Mode |
Electric Start |
| Start Performance |
-5℃ ~ 40℃ |
| Fuel / Volume |
Diesel Oil / 40L |
| Battery Capacity |
24V 45AH |
| Emission Standard |
National Phase II |
| Operation Type (Boom/Leg) |
Manual Operation, Manual Walking (Optional Remote Control) |
| Operational Characteristics |
Manual Operation (Optional Remote Control) |

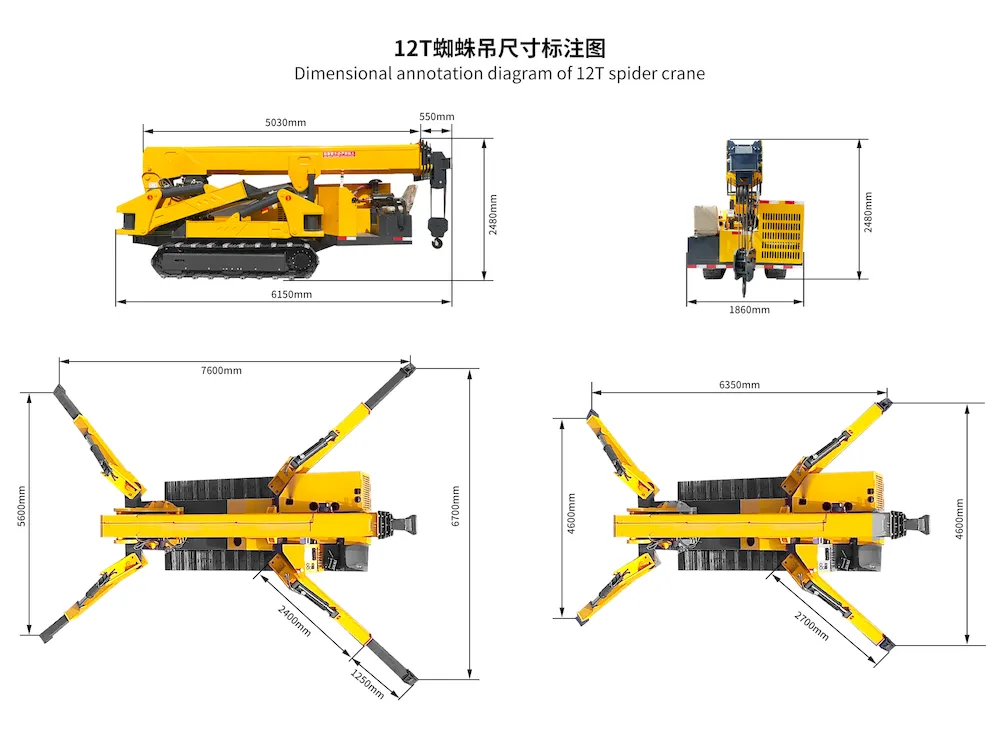

| Vehicle Size |
6.15m Length × 1.86m Width × 2.48m Height |
| Dead Weight |
12500kg |
| Track Size |
135 (Pitch) × 44 (Section) × 400 (Width) |
| Optional Device |
Optional Torque Controller / Remote Control / Hanging Basket / Hydraulic Fly Jib |
